Busbars 150/250/600A
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

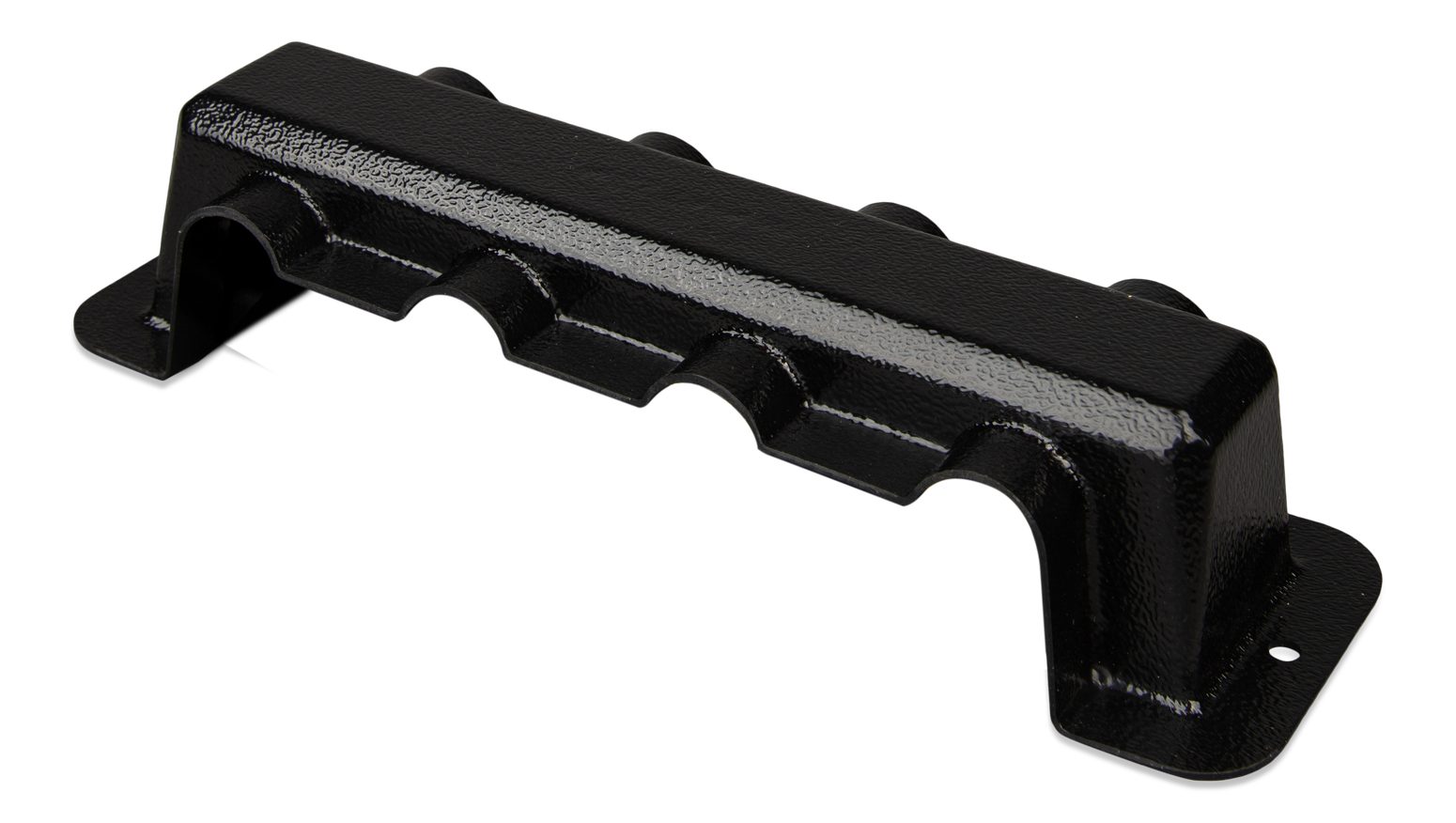

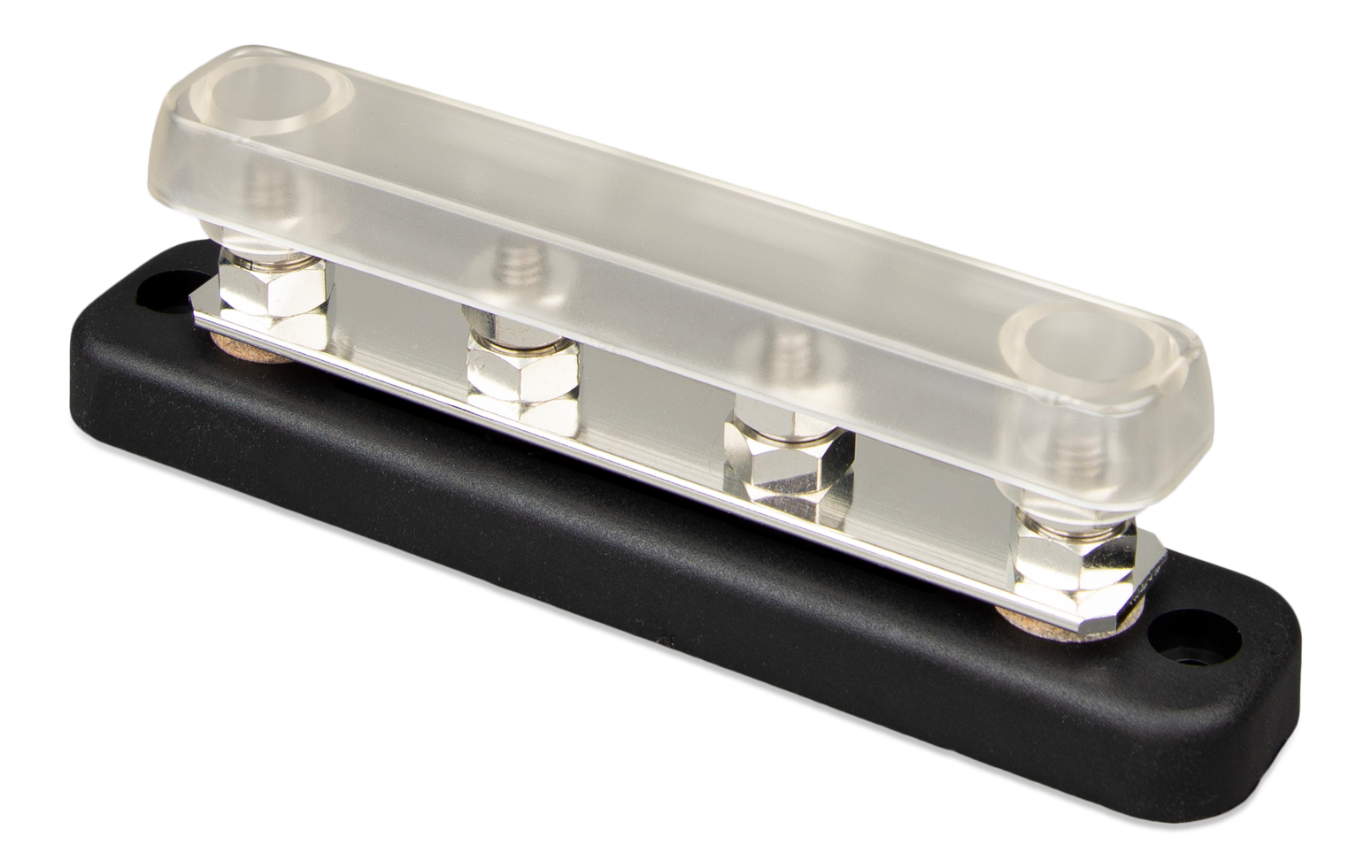

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Available models:

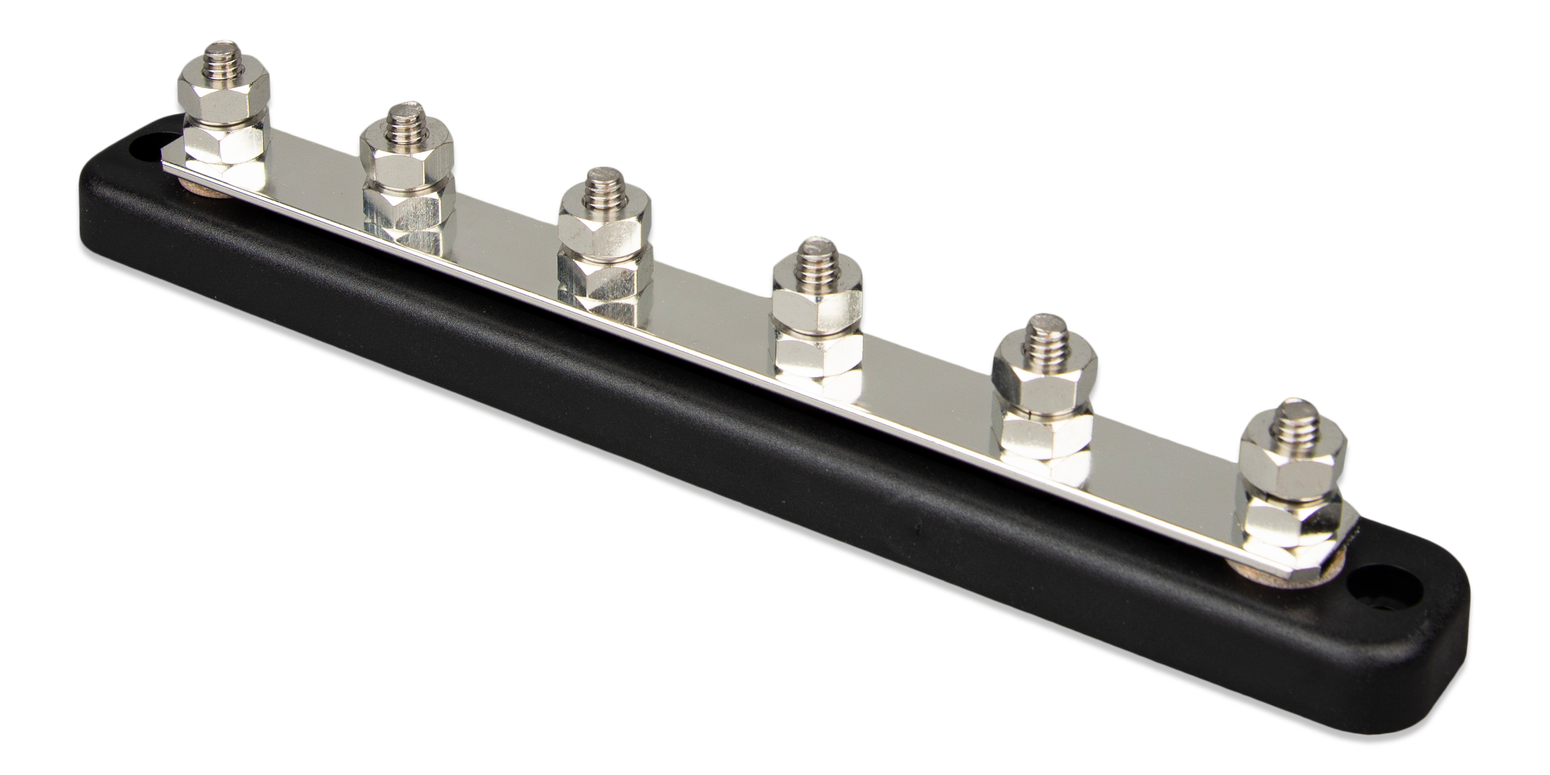

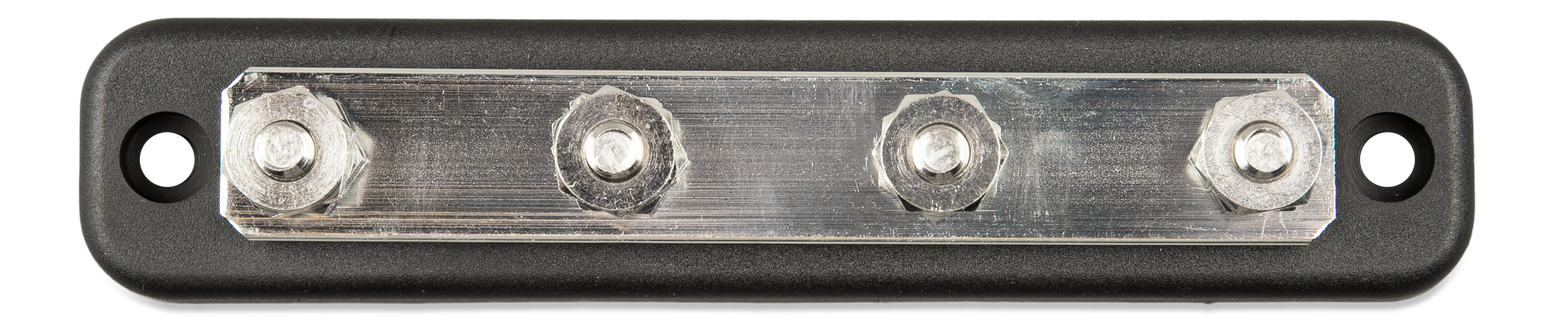

150A / 70V - 4 high current connections 150A / 70V - 6 high current connections
150A / 70A - 2P with 10 screws +cover
150A / 70A - 2P with 20 screws +cover
250A / 70V - 4 high current connections
250A / 70V - 6 high current connections
250A / 70A - 2P with 6 screws +cover
250A / 70A - 2P with 12 screws +cover
600A / 70V - 4 high current connections and 8 low current connections
600A / 70V - 8 high current connections and 8 low current connections
For more technical information and for the busbar dimensions see the datasheet.
